Querying Data

Records and analyses share the same interface and functionality for browsing.

This includes:

  • A Search bar, for basic substring matching against visible fields.
  • The Filter panel, for adding filters against visible, non-visible and nested fields.
  • The Summarise panel, for computing the number of items per summary group, as specified by the selected fields.
  • The Copy CLI Command, for copying the current filters and summary fields into a command for the Onyx command-line interface.
  • The results panel, Records or Analyses, that displays results matching the current query. Here, results can be re-ordered, as well as exported via the table Options dropdown. The Edit Columns button can also be used to change the returned columns.

We will now learn how to filter, aggregate and export data using this interface.

Filtering Data

Info

synthSCAPE is an Onyx project within CLIMB-TRE for hosting simulated metagenomic data as part of mSCAPE, a world-leading initiative trialling the use of metagenomic data for public health surveillance.

You can find the metadata schema for the synthSCAPE Onyx project here.

Defining the query

We are going to add filters on the synthSCAPE dataset to solve the following problem:

Query

Match all synthSCAPE records from 2025 that have a sequence purpose, a run ID of either R-14EC71EBA7 or R-F42A056185, and contain at least 100 reads of Influenza A Virus (taxon ID 11320).

This query can be broken down into the following criteria:

  1. The published_date must be greater than or equal to 2025-01-01.
  2. The sequence_purpose must not be blank.
  3. The run_id must be either R-14EC71EBA7 or R-F42A056185.
  4. Each record's classifier_calls must contain at least one entry matching the condition:
    • (taxon_id == 11320) AND (count_descendants >= 100)

Building the query

Adding a Filter

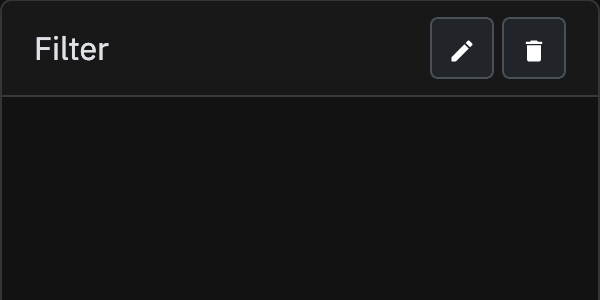

To add a new filter, click the icon on the Filter panel:

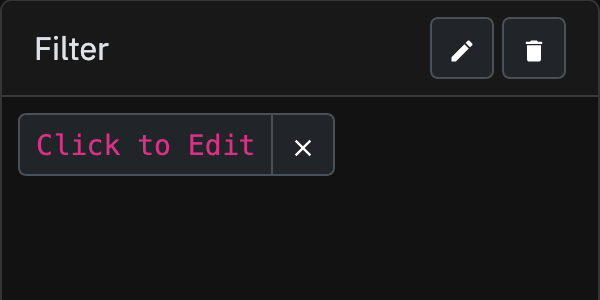

This creates an empty filter with the title Click to Edit.

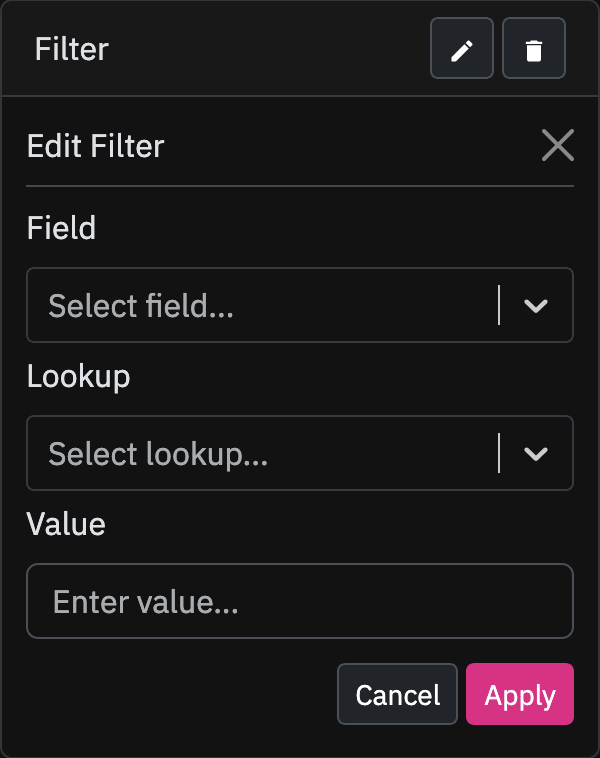

Clicking on this filter will open its settings:

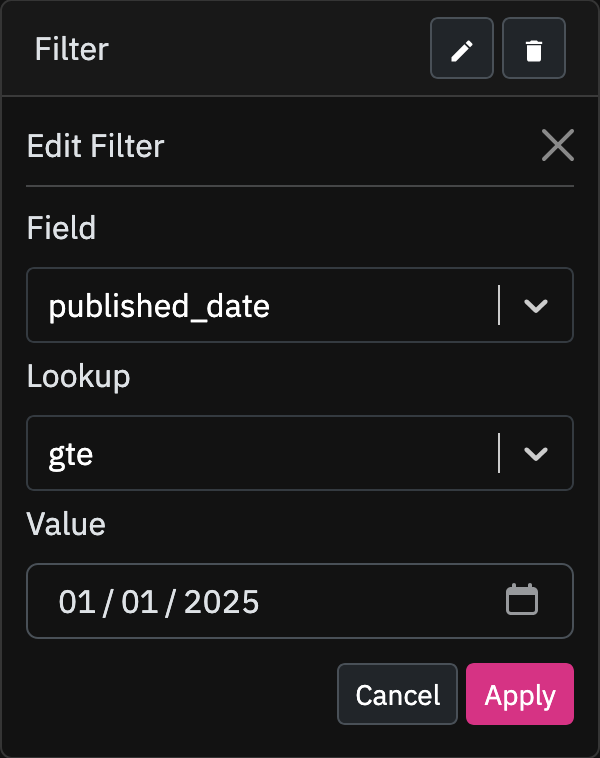

We will edit the filter as following:

  • Set the field to published_date.
  • Set the lookup to gte (greater than or equal).
  • Set the value to 2025-01-01.

Then hit Apply to filter to the dataset:

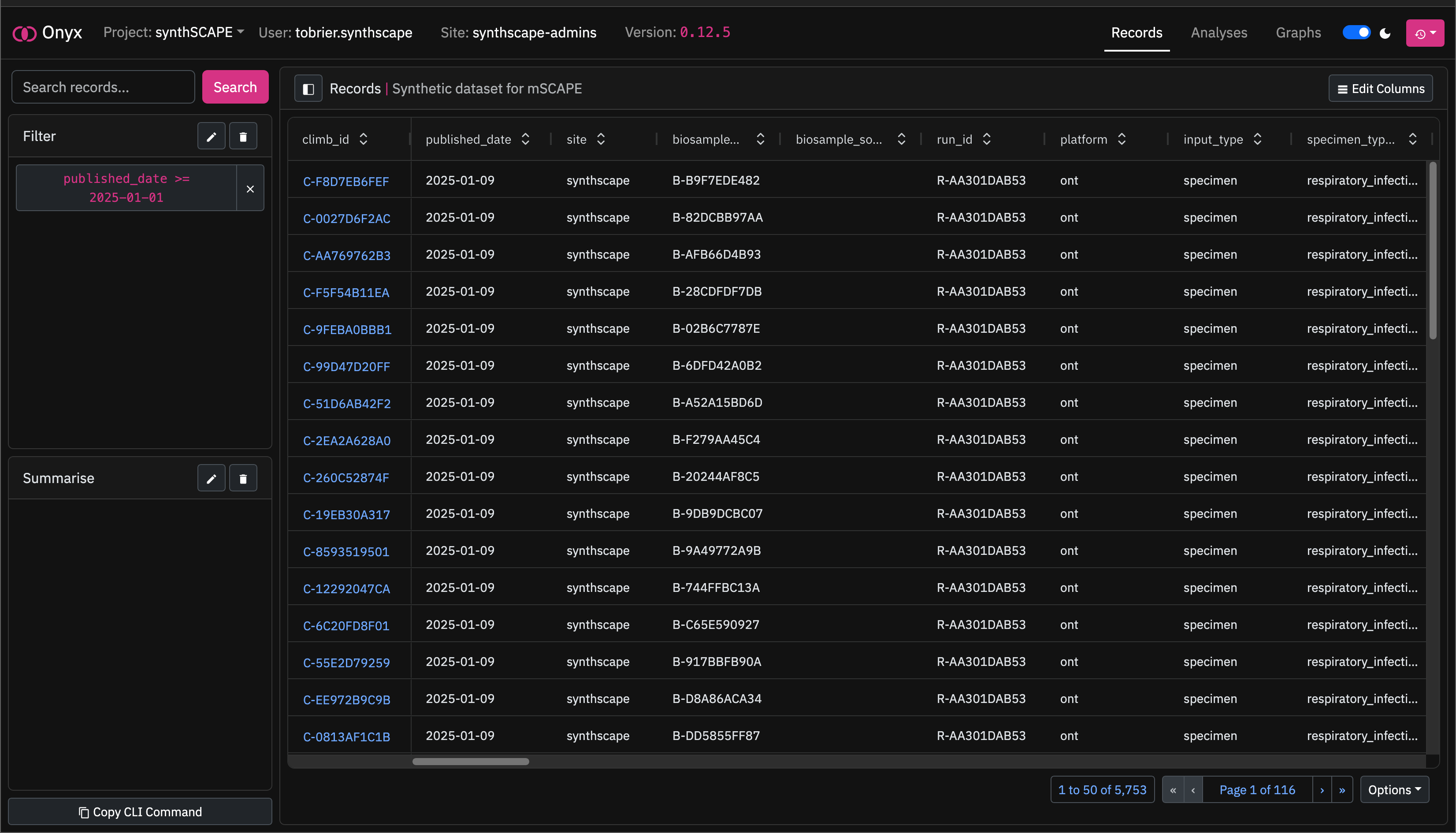

As we can see, the dataset has been filtered to return only records with a published_date greater than or equal to 2025-01-01.

Tip

In this example, we have used the gte (greater than or equal) lookup for published_date. However, we could also use the iso_year lookup and set this to 2025 instead.

More Filters

To add the second filter, we create another filter with:

  • Field: sequence_purpose
  • Lookup: isnull
  • Value: false

And to add the third filter, we create another filter with:

  • Field: run_id
  • Lookup: in
  • Values: R-14EC71EBA7, R-F42A056185

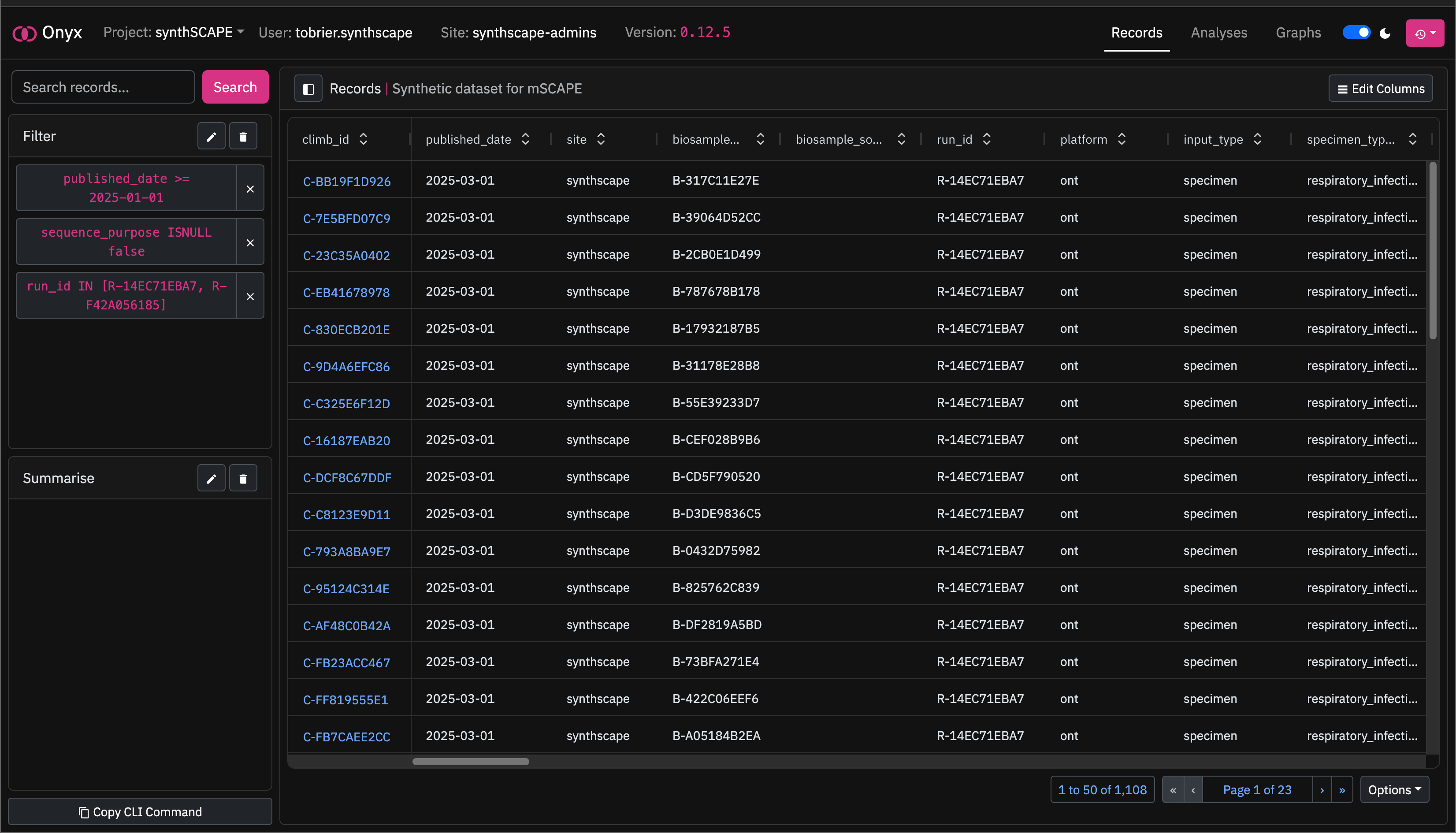

The dataset has now been filtered further:

Nested Filters

To match the final requirement, we need to create two nested filters:

Nested filter 1:

  • Field: classifier_calls__taxon_id
  • Lookup: exact
  • Value: 11320

Nested filter 2:

  • Field: classifier_calls__count_descendents
  • Lookup: gte
  • Value: 100

Each record in synthSCAPE contains multiple classifier_calls entries, that correspond to the taxa identified by Kraken2 within the sample. These classifier_calls entries also contain information such as the number of reads matched to each taxon, as well as the taxonomic rank.

When we apply the first nested filter to this classifier_calls table, Onyx will return all records which have at least one classifier_call with taxon_id == 11320.

When we apply both nested filters, Onyx will return all records which have at least one classifier_calls entry matching both taxon_id == 11320 and count_descendents >= 100.

Query Results

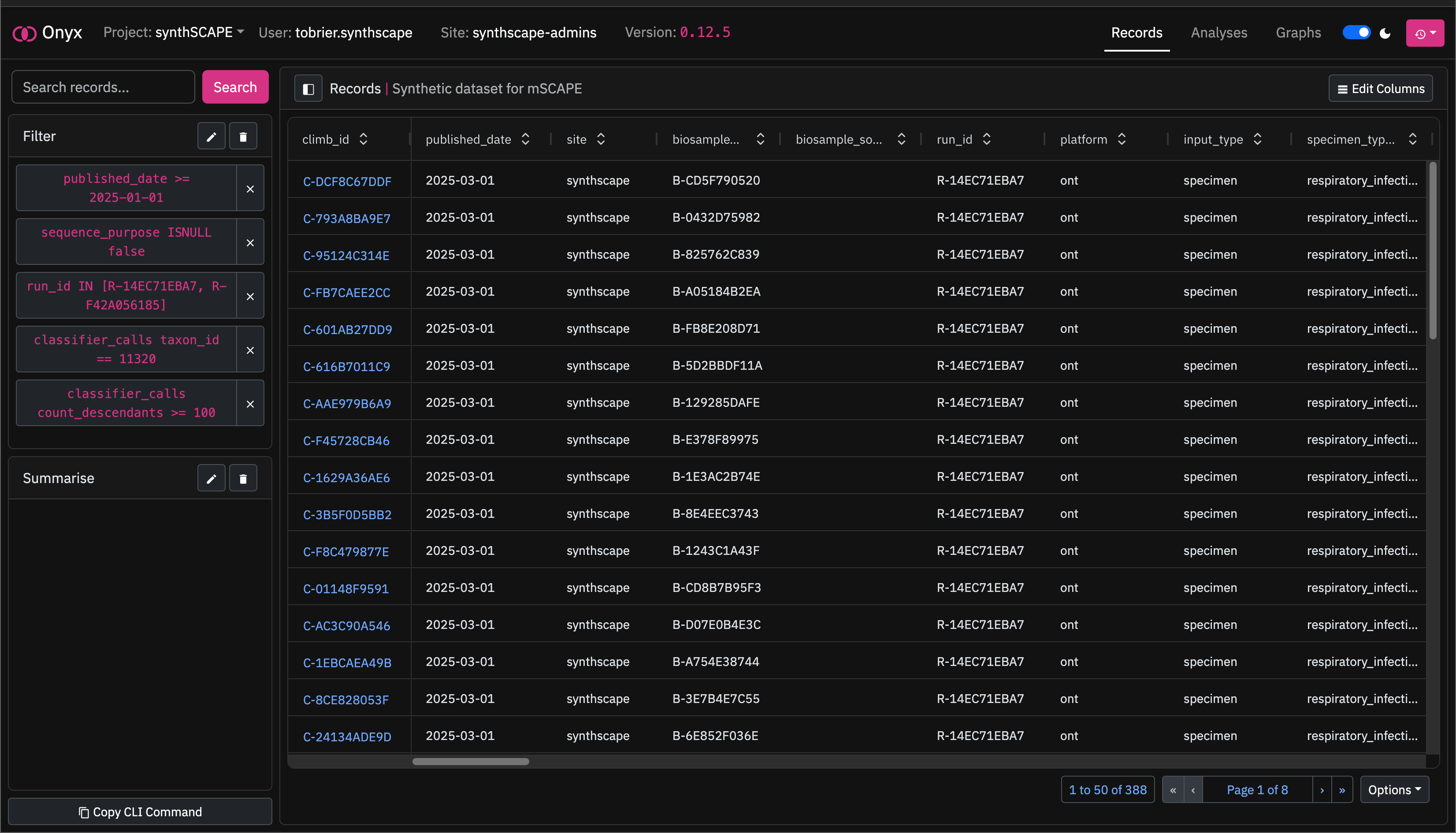

As we can see, we have now filtered the dataset from the initial 8310 records down to just 388 records that match the target query.

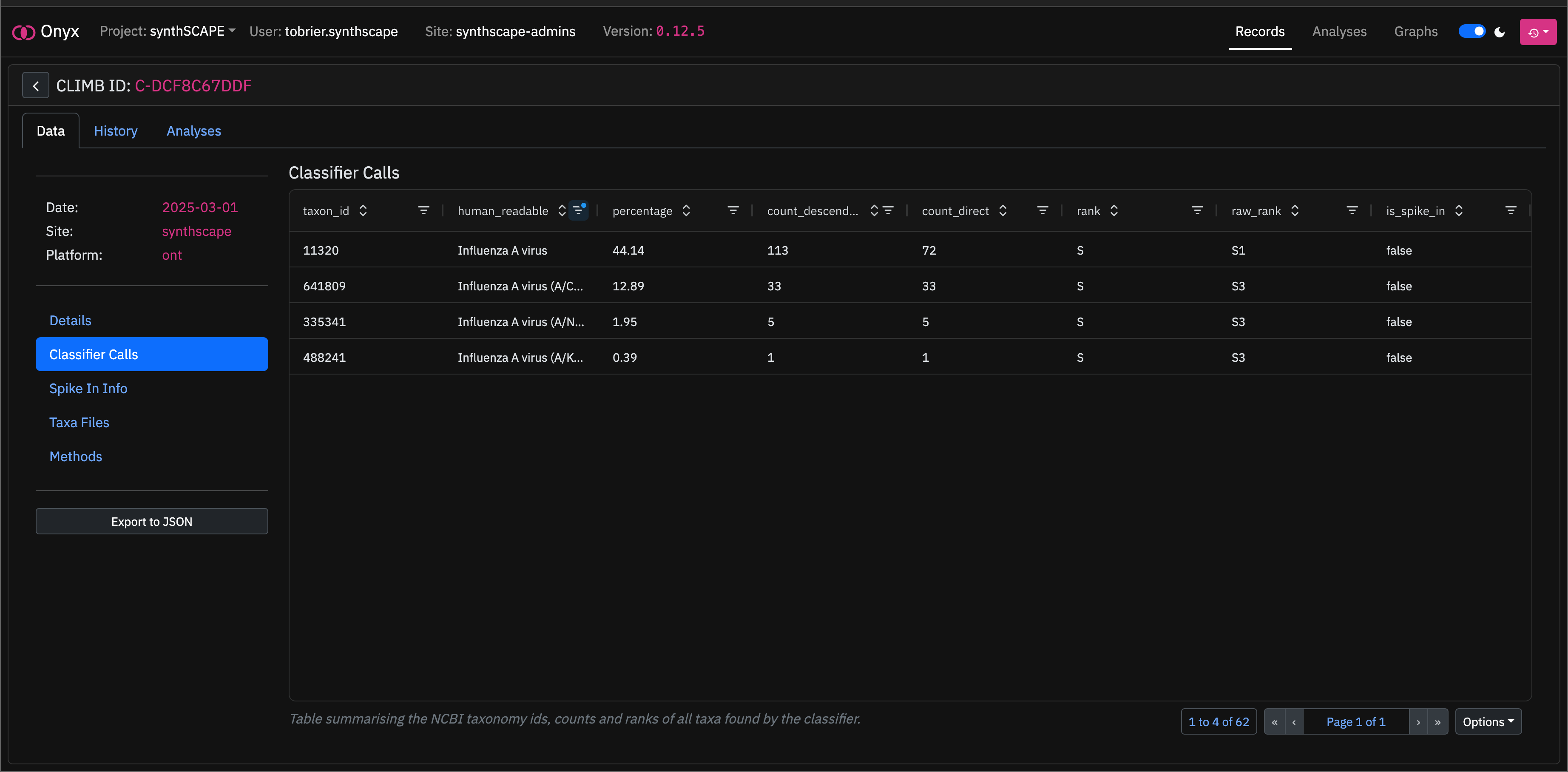

We can click on the first record, C-DCF8C67DDF, and navigate down to the Classifier Calls table and confirm over 100 reads matching Influenza A Virus:

Editing Columns

Going back to the results view, we may want to fix the columns that get returned from filtering. This will also speed up any later exports, as we are only exporting the columns that we need.

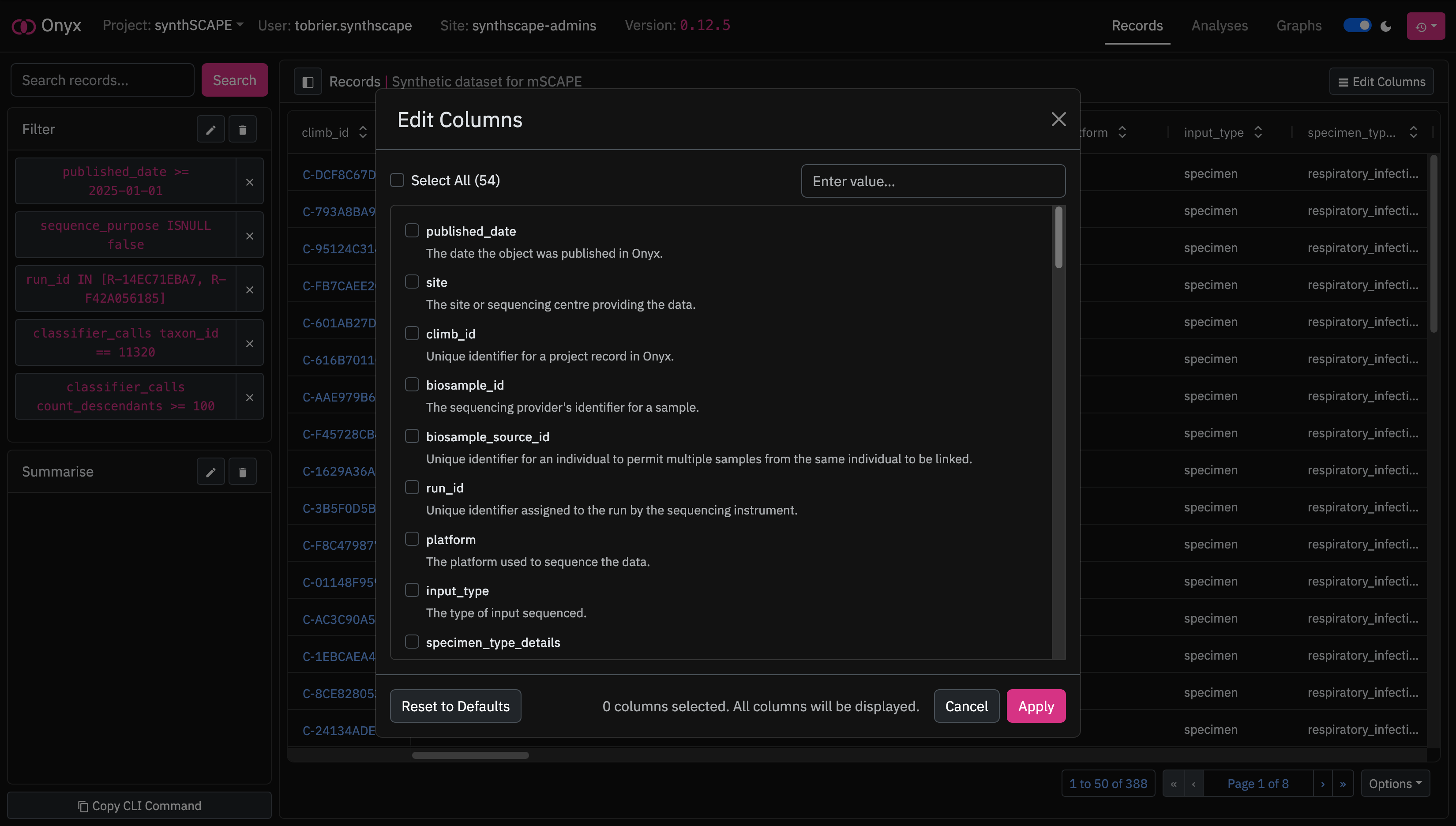

We can open the columns editor by clicking the Edit Columns button:

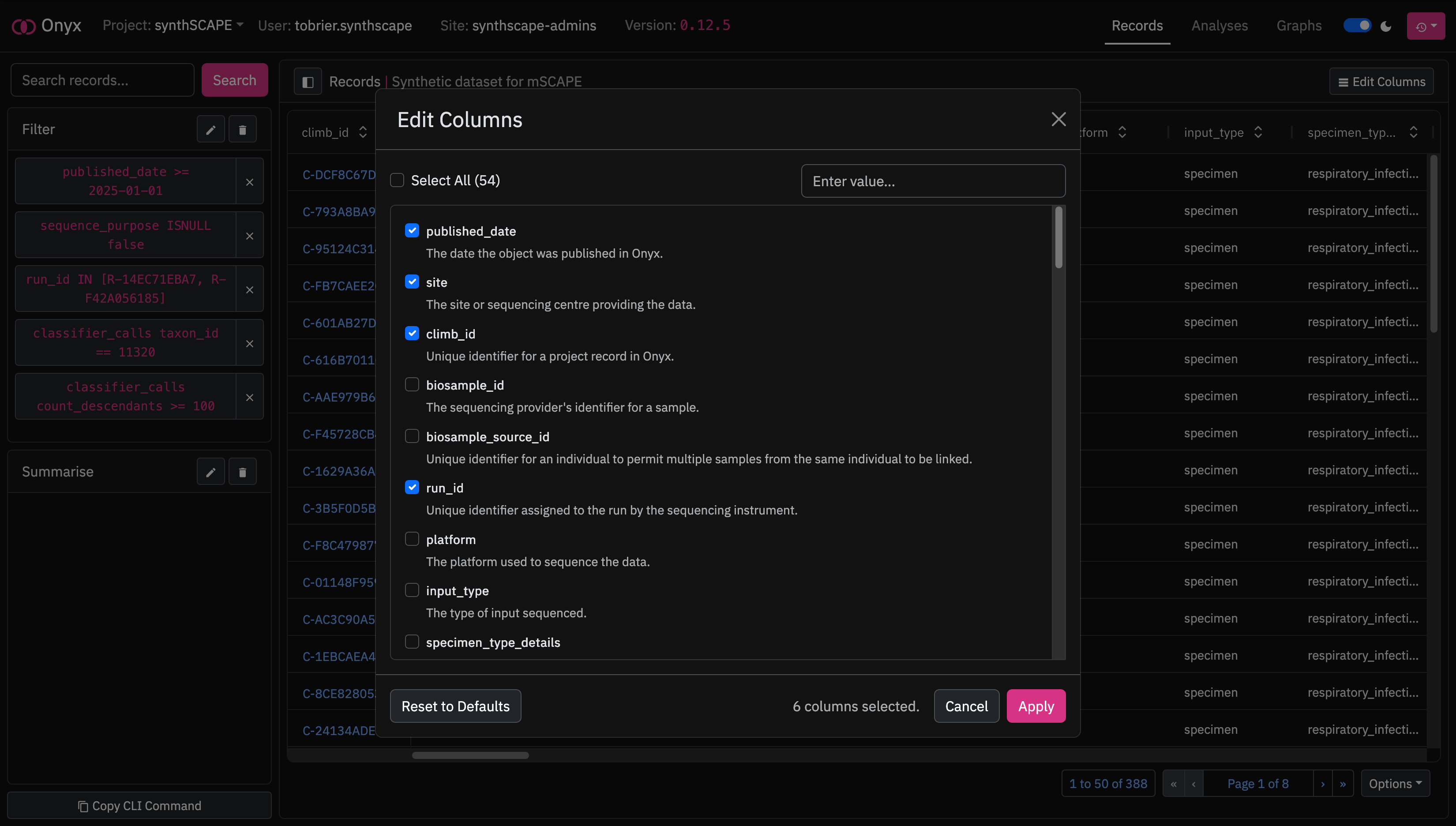

We will select the columns climb_id, site, published_date, sequence_purpose and ingest_report:

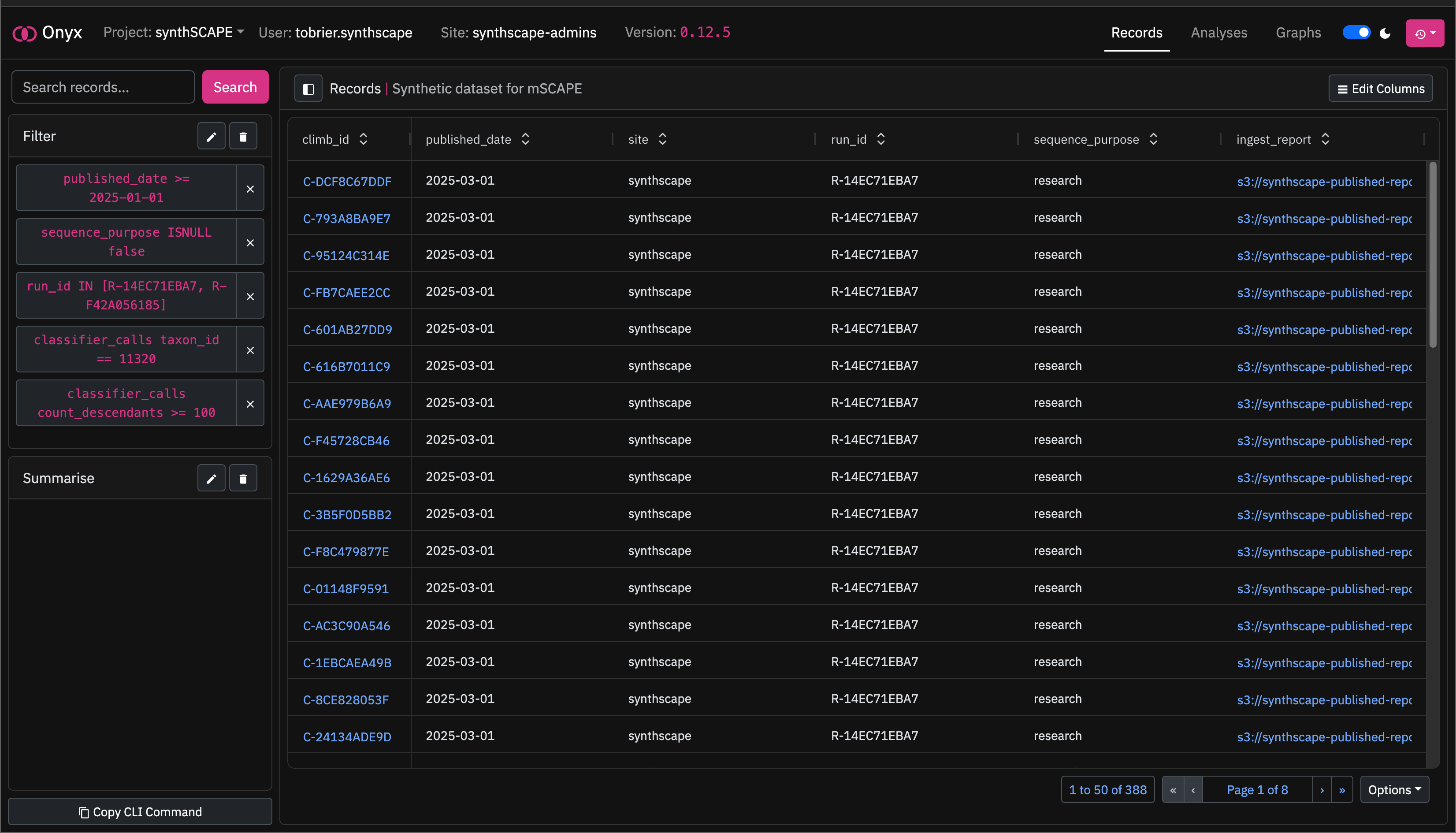

Then hit Apply, and only the columns we are interested in are returned:

Exporting Results

Exporting to CSV/TSV

We have our filtered records and the columns we are interested in. Now, we want to export this data to a CSV or TSV within JupyterLab for continued analysis.

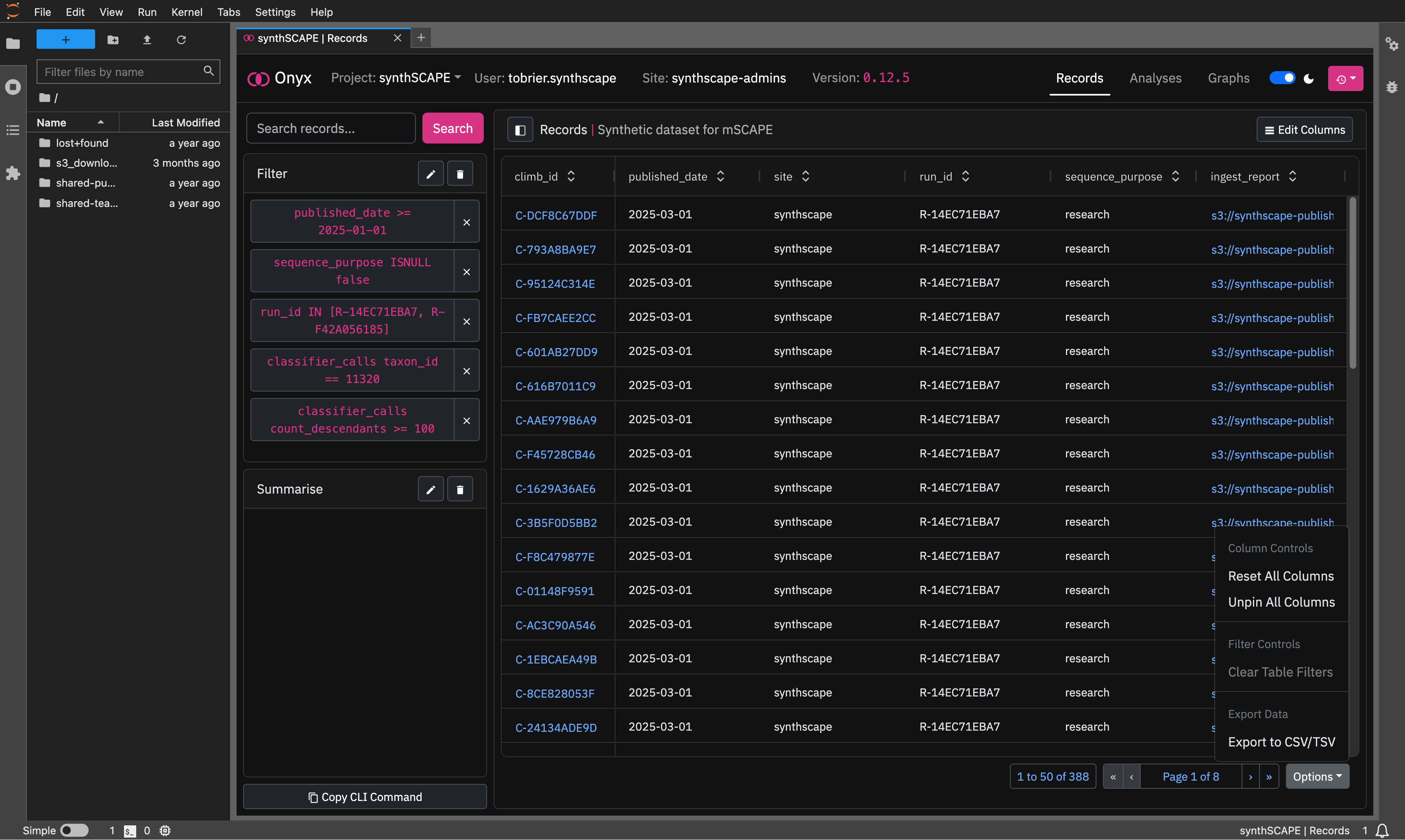

Navigate down to the Options menu at the bottom-right of the results table, and select Export to CSV/TSV:

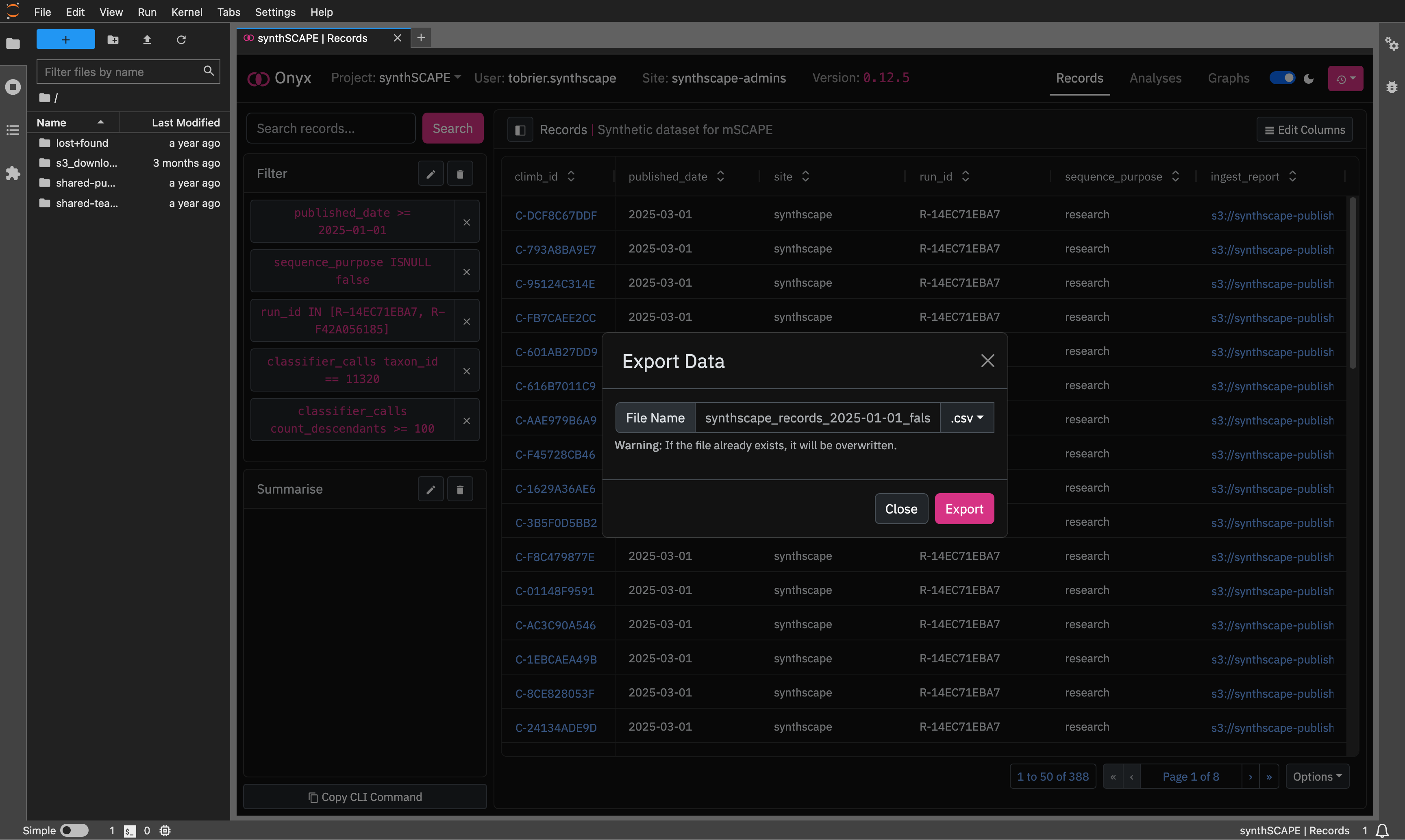

Here, we can see a default generated name for the file, and options to switch between CSV and TSV formats:

We will keep the default name and choose .csv.

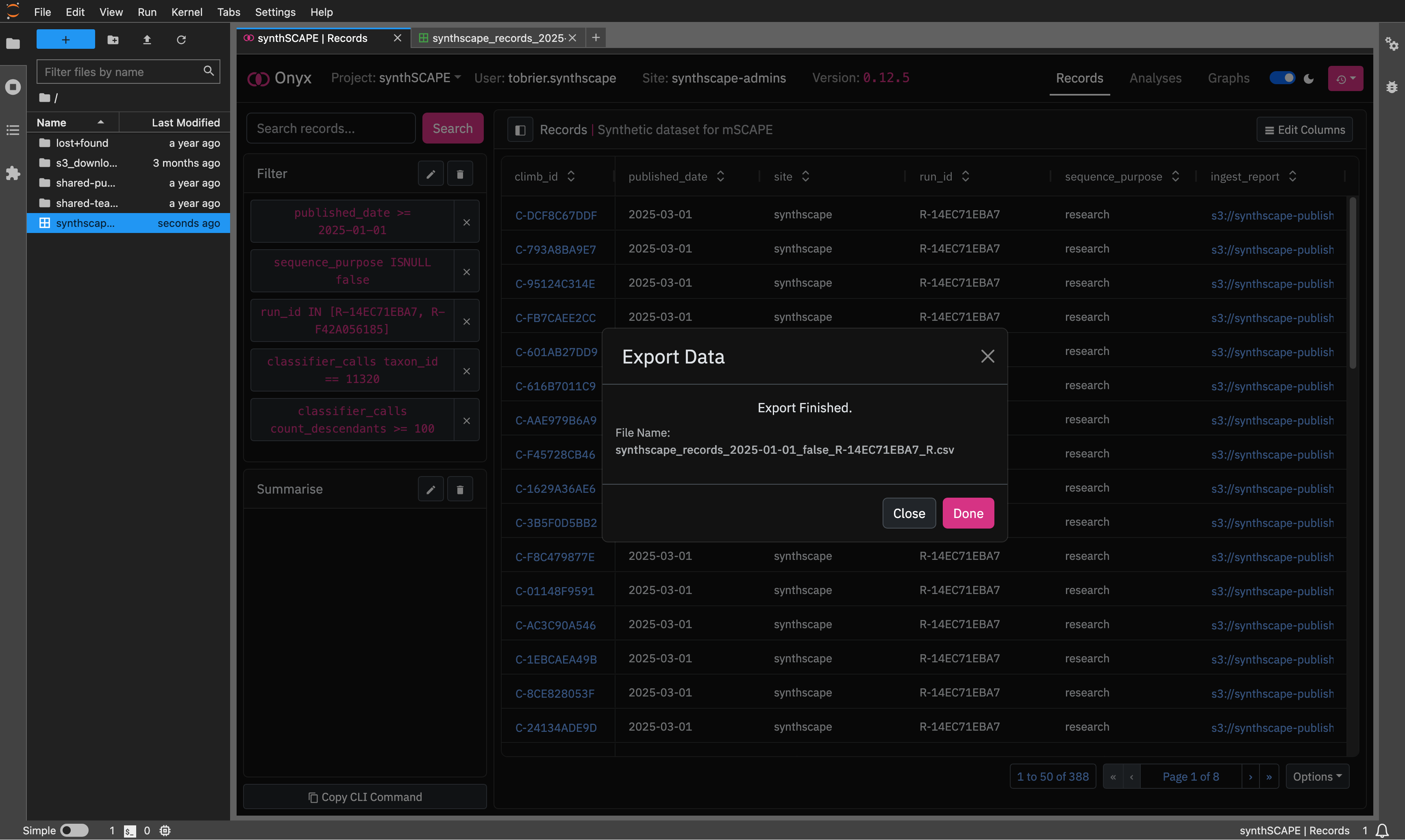

Clicking Export will then pull the requested data, and create a CSV file in JupyterLab:

Copying to the Onyx CLI

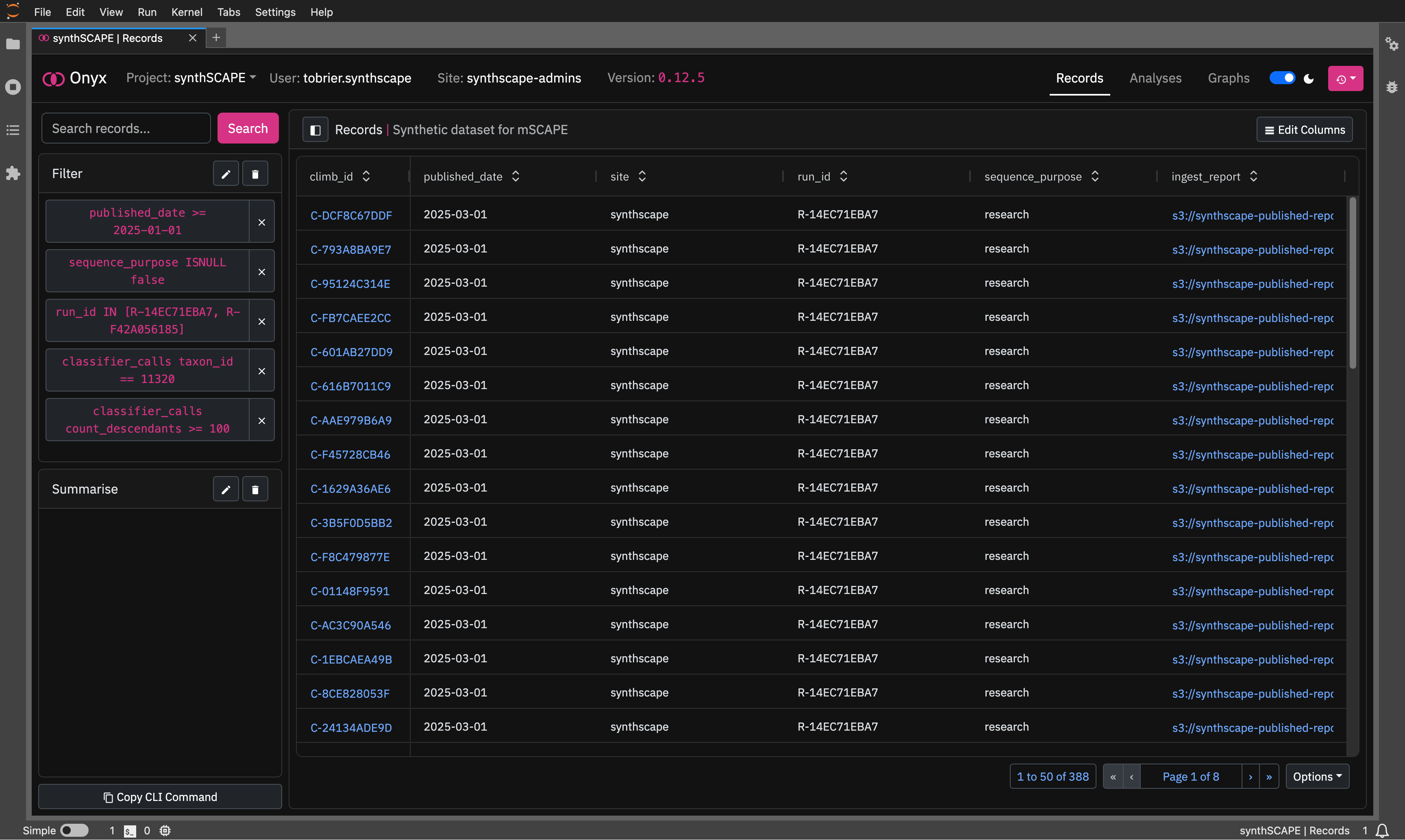

If we wish to transfer our filters to the Onyx command-line interface, we can click Copy CLI Command:

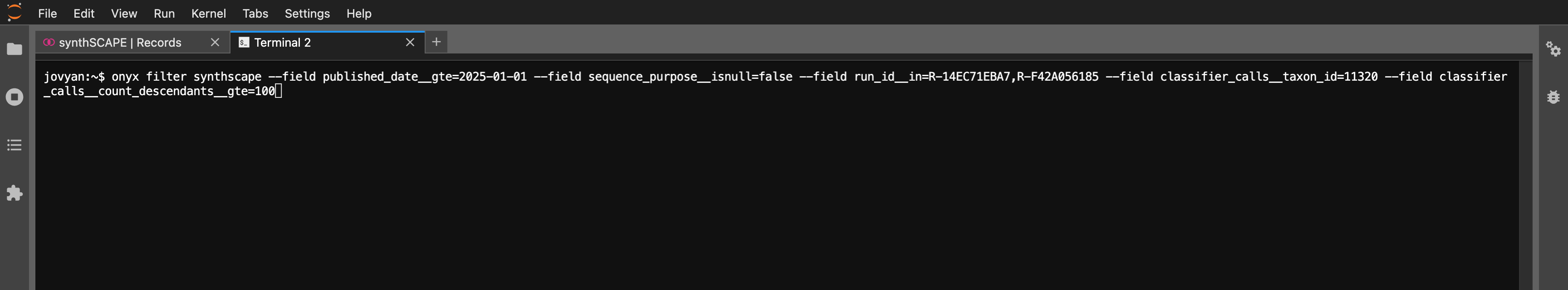

Then paste this into a terminal:

Note

Copy CLI Command only copies filters and summary fields; it does not transfer column and format settings.

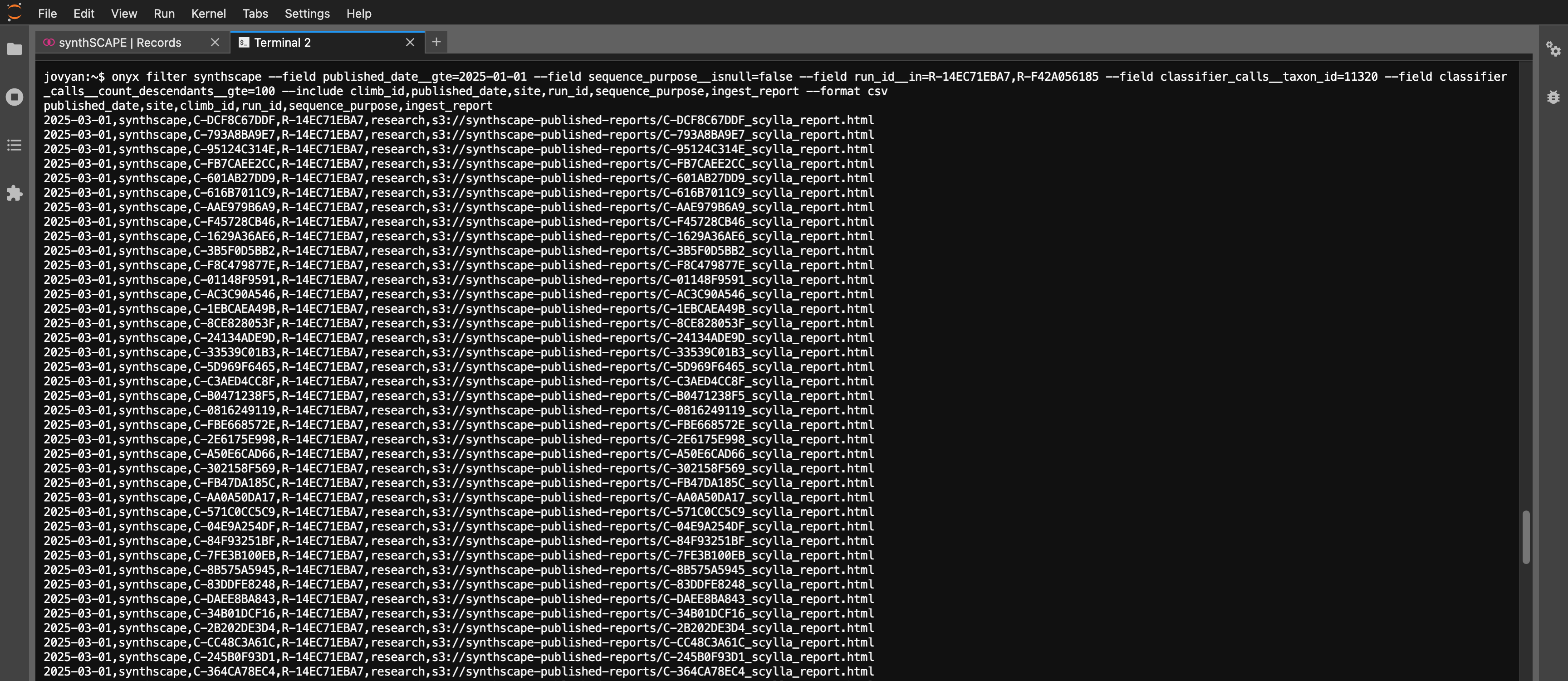

We can edit the fields/format with the --include and --format arguments, and filter the dataset:
